New VAP Aston Martin V8 Vantage Twin Plate Organic Clutch & Lightweight Flywheel OEM Replacement Manual

• Download-Aston-Martin-Vantage-Clutch-Procedures.pdf

Includes:

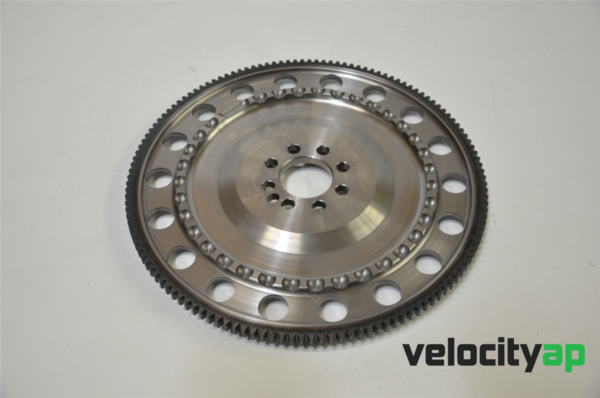

– Lightweight Cast, Chemically Hardened 2 Piece Steel+Ductile Iron Flywheel (identical in weight to 1 piece CNC Steel option

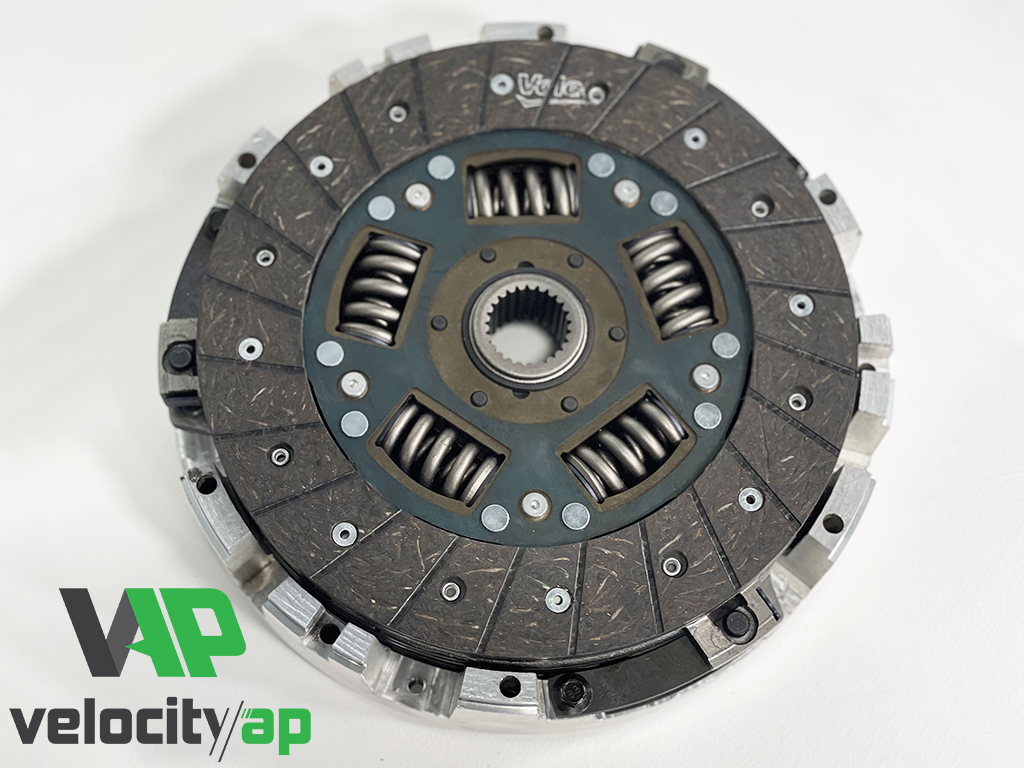

– VelocityAP Valeo Friction Material Faced Twin Plate Organic Clutch + Fasteners
– Release Bearing/Slave Cylinder

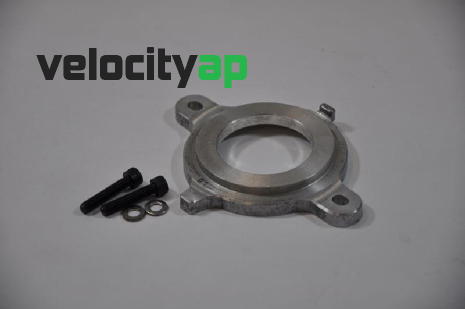

– Release Bearing Spacer + Fasteners

Torque Specs:
– Clutch to Flywheel 19nm
– Flywheel to Crank 110nm

****PLEASE NOTE****

• AROUND 20% OF VEHICLES WILL NOTICE ‘TRANSAXLE RATTLE’ WHEN IN NEUTRAL, AT IDLE, WITH THE CLUTCH DISENGAGED. THIS IS JUST DEPENDENT ON WEAR & TOLERANCE IN THE TRANSAXLE.  WE RECOMMEND REPLACING TRANSAXLE FLUID WITH AMSOIL 75W-110, AND USING AMSOIL SLIP-LOCK ADDITIVE.  IF YOU HAVE VAP ECU TUNING WE ALSO ADJUST IDLE RPM & TIMING TO MITIGATE.
• 2014MY-ON VEHICLES WILL REQUIRE MACHINING TO THE TORQUE TUBE, OR FOR MANUAL VEHICLES ONLY, A ‘CORE EXCHANGE’ TORQUE TUBE TO BE PROVIDED BY ASTON MARTIN
• STANDARD AM REPLACEMENT PROCEDURES MUST BE COMPLETED – ASM VEHICLES MUST HAVE CLUTCH STATISTICS ERASED.  ALL VEHICLES MUST HAVE MISFIRE CORRECTION FACTORS ERASED AND RE-LEARNED (FOR 2010.5MY-ON VINS FROM *13435 THIS CAN ONLY BE DONE BY AMDS FACTORY DIAGNOSTIC TOOLS)
• SELF ADJUSTING CLUTCH COMPRESSION & ALIGNMENT TOOL MUST BE USED FOR INSTALLATION.
